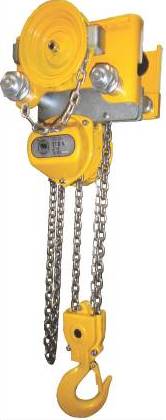

Black Bear Low Headroom Geared Trolley
Free Shipping on Black Bear Hoist Products for a Limited Time. Web Sales Only
Black Bear Trolleys are available in capacities from ½ ton through 10 tons with a minimum adjustability of 2 inches. Wheels are equipped with lifetime lubricated ball bearings and compound tread which allow usage on either wide flange or American Standard I beams. Hand Geared trolleys are equipped with zinc plated hand chain with a drop equal to the lift of the hoist which is suspended from it, minus one foot.
LGT Series - Low Headroom Geared Trolley
Model
Capacity (Lbs.)
Flange Width (Ins)
Details
Hand Chain Drop
Your Price
LGT-050
1,100 lbs
3” ~ 5”
SpecificationsBrochure
10 ft
$404
Operation ManualParts List
15 ft
$439
Parts Pricing
20 ft
$474
LGT-100
2,200 lbs
3” ~ 6”
$461
$496
$531
LGT-200
4,400 lbs
4” ~ 8”
$631
$665
$701
LGT-300
6,600 lbs
$749
$784
$819
LGT-500
11,000 lbs
5” ~ 8”
$1,015
$1,050
$1,085
Home
Black Bear Hoist Products
Lever Hoist
Hand Chain Hoist
Low Headroom Gear Trolleywith Hand Chain Hoist
Low Headroom Plain Trolleywith Hand Chain Hoist
Chain Bucket
Electric Chain Hoist
Trolley
Plain Trolley
Geared Trolley
Low Headroom Plain Trolley
Low Headroom Geared Trolley
Motorized Trolley
Motor Saddle Trolley
Beam Clamps
Wire Rope Hoist
End Trucks
Air Hoist
Concert Hoist
Parts Center
www.BlackBearHoistParts.com
Replacement Parts & Pricing
Lever HoistParts Order Form
Hand Chain HoistsParts Order Form
Electric Chain HoistParts Order Form
Wire Rope HoistParts Order Form
TrolleyParts Order Form
End-truckParts Order Form
Parts Comparison Chart
Operation Manual
Service Center
Black Bear Information
Specifications Brochures
Catalog
Product Drawings
Site Map
Contact Us
Flange Width Adjustment Adder Non Standard
YourPrice
LPT/LGT-100
6" - 8"
$76
8" - 10"
$86
10” - 12”
$95
LPT/LGT-200
4” ~ 7”
7" - 9"
$97
9" - 11"
$114
11” - 12”
$124
LPT/LGT-300
$131
10" - 12"
$142
LPT/LGT-500
$158
$169
Note:
1. Dimensions are approximate. If clearances are critical, ask for certified drawing.
2. All prices in U.S. Dollars F.O.B. Fontana, California, Prepaid & Add
3. All prices subject to change without notice.
4. Custom Hand Chain lengths are available for Geared Trolley.
5. Lug Mount low headroom trolleys are available.
