Flange Width Adjustment Adder Non Standard
Model
Capacity (Lbs.)
Flange Width (Ins)
Details
YourPrice
LPT/LGT-100
2,200 lbs
3” ~ 6”
6" - 8"
$76
8" - 10"
$86
10” - 12”
$95
LPT/LGT-200
4,400 lbs
4” ~ 7”
7" - 9"
$97
9" - 11"
$114
11” - 12”
$124
LPT/LGT-300
6,600 lbs
4” ~ 8”
$131
10" - 12"
$142
LPT/LGT-500
11,000 lbs
5” ~ 8”
$158
$169
Note:
1. Dimensions are approximate. If clearances are critical, ask for certified drawing.
2. All prices in U.S. Dollars F.O.B. Fontana, California, Prepaid & Add
3. All prices subject to change without notice.
4. Custom Hand Chain lengths are available for Geared Trolley.
5. Lug Mount low headroom trolleys are available.
© 2019 All Rights Reserved MBI Crane and Hoist Phone: 504-616-8789 - Toll Free: 1-877-97-HOIST - (1-877-974-6478) Email: mbi@mbicraneandhoist.com Authorized Master Distributor of Black Bear Hoist
Black Bear Low Headroom Plain Trolley
Free Shipping on Black Bear Hoist Products for a Limited Time. Web Sales Only
Black Bear Trolleys are available in capacities from ½ ton through 10 tons with a minimum adjustability of 2 inches. Wheels are equipped with lifetime lubricated ball bearings and compound tread which allow usage on either wide flange or American Standard I beams. Hand Geared trolleys are equipped with zinc plated hand chain with a drop equal to the lift of the hoist which is suspended from it, minus one foot.

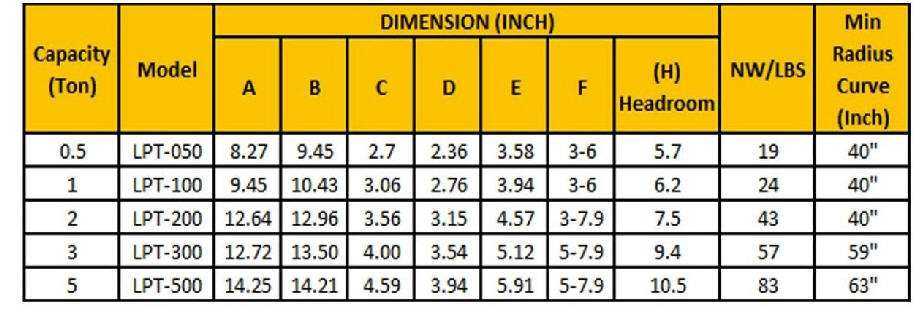

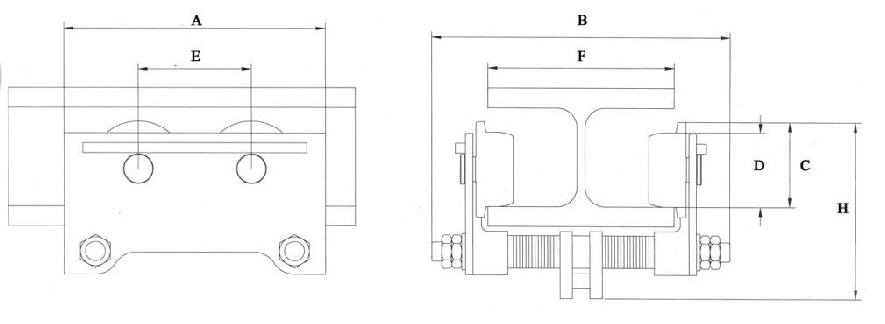

LPT Series - Low Headroom Plain Trolley
Hand Chain Drop
Your Price
LPT-050
1,100 lbs
3” ~ 5”
SpecificationsBrochure
10 ft
$273
Operation ManualParts List
15 ft
$308
Parts Pricing
20 ft
$343
LPT-100
$322
$357
$392
LPT-200
$453
$488
$523
LPT-300
$561
$596
$631
LPT-500
$799
$834
$869
