Black Bear Hand Chain Hoist - 7.5 Ton (YB-750)www.blackbearhoistparts.com

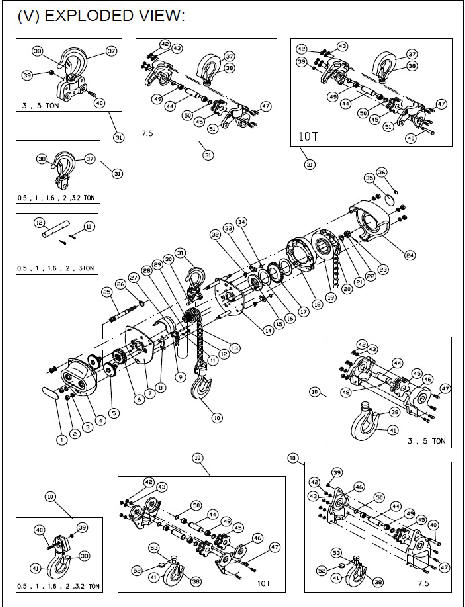

*** Click on the picture for a LARGER view ***
Key #
Part #
Description
Qty. Req.
Price Each
1
NAME PLATE
$
2
HEX NUT
6
3
SPRING WASHER
4
GEAR COVER - YELLOW
GEAR COVER - ORANGE
5
2ND GEAR
4TH GEAR
7
GEAR SIDE PLATE - YELLOW
GEAR SIDE PLATE - ORANGE
8
STRIPPER
9
LOAD CHAIN SLACK END ANCHORAGE
10
LOWER HOOK ASSEMBLY - YELLOW
LOWER HOOK ASSEMBLY - ORANGE
11
NYLON LOCK NUT
COTTER PIN
12
DEAD END BOLT
SLACK END ANCHORAGE PIN
13
LOAD CHAIN
14
BRAKE SIDE PLATE - YELLOW
BRAKE SIDE PLATE - ORANGE
15
BRAKE HUB
16
FRICTION WASHER - BRAKE DISC
17
RATCHET
18
RATCHET COVER - YELLOW
RATCHET COVER - ORANGE
19
HAND WHEEL
20
HAND CHAIN
21
FLAT WASHER
22
CASTLE NUT
23
24
HAND WHEEL COVER - YELLOW
HAND WHEEL COVER - ORANGE
25
1ST GEAR
26
27
CHAIN GUIDE
28
29
LOAD SHEAVE
30
UPPER HOOK PIN
31
UPPER HOOK ASSEMBLY - YELLOW
UPPER HOOK ASSEMBLY - ORANGE
32
PAWL SPRING
33
PAWL
34
SNAP RING
35
WARNING LABEL
36
CLASS LABEL
37
TOP HOOK
38
SAFETY LATCH - YELLOW
39
40
41
BOTTOM HOOK
42
4/7/8
43
SPRING LOCK WASHER
44
SHEAVE SHAFE
1/2/3
45
SHEAVE WHEEL
46
LOWER HOOK BLOCK HALF - YELLOW
LOWER HOOK BLOCK HALF - ORANGE
47
HEX RECESS BOLT
48
SPRING RING
49
NEEDLE BEARING
4/6
50
51
UPPER HOOK BLOCK HALF - YELLOW
UPPER HOOK BLOCK HALF - ORANGE
52
53
SPRING PIN
