Black Bear Hand Chain Hoist - 3 Ton (YB-300)www.blackbearhoistparts.com

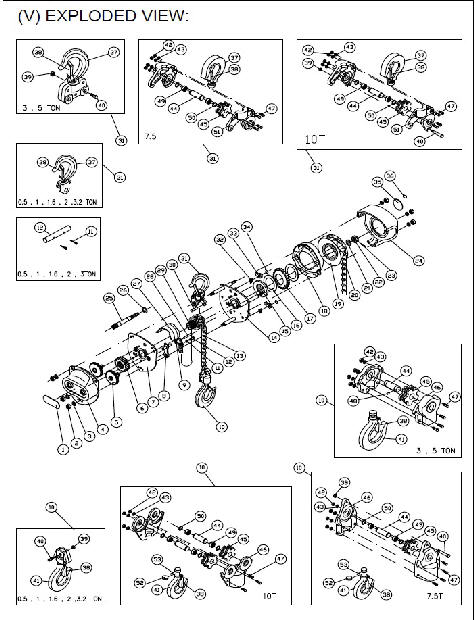

*** Click on the picture for a LARGER view ***
Key #
Part #
Description
Qty. Req.
Price Each
1
MB1903-30I
NAME PLATE
$
2
MB1421-051630I
HEX NUT
6
3
MB1441-051630I
SPRING WASHER
4
MB1201-1630I-Y
GEAR COVER - YELLOW
MB1201-1630I-O
GEAR COVER - ORANGE
5
MB1202-1630I
2ND GEAR / 3RD GEAR ASSEMBLY
MB1203-1630I
4TH GEAR
7
MB1204-1630I-Y
GEAR SIDE PLATE - YELLOW
MB1204-1630I-O
GEAR SIDE PLATE - ORANGE
8
MB1205-1630I
STRIPPER
9
MB1206-101630I
LOAD CHAIN SLACK END ANCHORAGE
10
MB1207-30I-Y
LOWER HOOK ASSEMBLY - YELLOW
MB1207-30I-O
LOWER HOOK ASSEMBLY - ORANGE
11
MB1422-1030I
NYLON LOCK NUT
MB1471-1030I
COTTER PIN
12
MB1401-1030I
DEAD END BOLT
MB1208-1030I
SLACK END ANCHORAGE PIN
13
MB1901-30I
LOAD CHAIN - 7.1mm
14
MB1209-163I-Y
BRAKE SIDE PLATE - YELLOW
MB1209-163I-O
BRAKE SIDE PLATE - ORANGE
15
MB1210-1630I
BRAKE HUB
16
MB1211-1630I
BRAKE DISC
17
MB1212-1630I
RATCHET
18
MB1213-1630I-Y
RATCHET COVER - YELLOW
MB1213-1630I-O
RATCHET COVER - ORANGE
19
MB1214-1630I
HAND WHEEL
20
MB1902-05100I
HAND CHAIN
21
MB1442-1630I
FLAT WASHER
22
MB1423-05100I
CASTLE NUT
23
MB1472-05100I
24
MB1215-1630I-Y
HAND WHEEL COVER - YELLOW
MB1215-1630I-O
HAND WHEEL COVER - ORANGE
25
MB1216-1630I
1ST GEAR
26
MB1217-1630I
27
MB1218-1630I
CHAIN GUIDE
28
MB1219-1630I
29
MB1220-1630I
LOAD SHEAVE
30
MB1221-1632I
UPPER HOOK PIN
31
MB1222-300I-Y
UPPER HOOK ASSEMBLY - YELLOW
MB1222-300I-O
UPPER HOOK ASSEMBLY - ORANGE
32
MB1223-051630I
PAWL SPRING
33
MB1224-051630I
PAWL
34
MB1461-16100I
SNAP RING
35
MB1904-30I
WARNING LABEL
36
MB1905-05100I
CLASS LABEL
37
SEE KEY # 31
TOP HOOK
38
MB1226-30I
SAFETY LATCH - YELLOW
39
MB1424-30I
40
MB1402-30I
41
MB1227-30I
BOTTOM HOOK
42
MB1425-30I
4/7/8
43
MB1443-30I
SPRING LOCK WASHER
44
MB1228-30I
SHEAVE SHAFE
1/2/3
45
MB1229-30I
SHEAVE WHEEL
46
CONTACT US
LOWER HOOK BLOCK HALF - YELLOW
LOWER HOOK BLOCK HALF - ORANGE
47
MB1403-30I
HEX RECESS BOLT
48
MB1473-30I
SPRING RING
